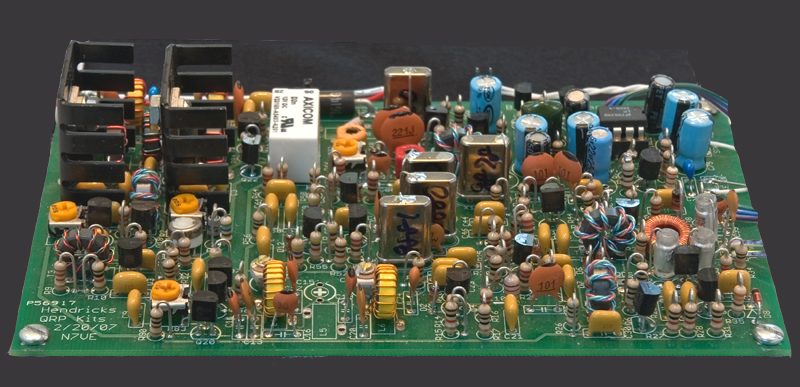

The BitX20A and BitX17A are complete SSB kits with board, all parts, digital display and custom powder coated and punched case that is based on the BitX20 that was designed by Ashlan Farhan. The original version was built ugly construction, and you had to source all the parts. I discovered the BitX20 site on Yahoo in 2007, and decided that the BitX20 would be a neat kit for Hendricks QRP Kits. The problem was that it did not have a pcb. A team of Dan Tayloe, Jim Kortge and Arv Evans have worked countless hours making sure that the pcb version was stable and would meet United States F.C.C. Specs. We had to go through several revisions to get it right, and we are happy with the result, even though it took a long time. Some things just take time. The kit includes a commercial quality plated through, silkscreened, solder masked board, and all board mounted parts, plus the polyvaricon tuning capacitor, digital dial, custom powder coated and punched case, knobs and controls. Everything you need to build the kit is provided.

I encourage you to check out the BitX20 users group on Yahoo. They have agreed to provide support for the kits. There are hundreds of messages on there about the history and development of this kit. Our kit puts out about 10 watts, features dual IRF510's as finals in a push-pull arrangement. The schematic is available at the Bitx20 site on Yahoo.


Supporting Files and Documents

Here is the manual for the BitX20A SSB Transceiver. Arv Evans did a fantastic job of writing it with the help of the BitX20A Design Team of Arv Evans, Jim Kortge, and Dan Tayloe, plus contributions from several other members of the BitX20 Yahoo List. This is an excellent manual. If you have questions or need support, please join the Yahoo BitX20 list and post there. The group there will provide wonderful support and knowledge to help you with your build. Enjoy.

 Full Bitx20 Assembly Manual

 Full Bitx17 Assembly Manual (ver 03/22/09)

 Digital Dial Assembly Manual (Current ver B)

 BITX20 Build Notes V6

 Full Bitx20 Assembly Manual Spanish

 Full Bitx17 Assembly Manual Spanish

 Assembly instructions for the Bail

 Bitx20 to BITX17 Conversion Instructions

Ordering Information

Ordering electronically by PayPal using the buttons below.

When an order is placed through PayPal, shipping charges are automatically calculated then a confirmation email is immediately sent by PayPal. We also receive this same email, so please rest assured that we have logged your order into our books. No other order confirmation will be issued. Your kit will be shipped in 1-2 weeks after our receiving the order, unless otherwise stated. Thanks for your support.

BitX17a Full Transceiver, Case, and Digital Dial: $190.00
BitX20a Full Transceiver, Case, and Digital Dial: $190.00
