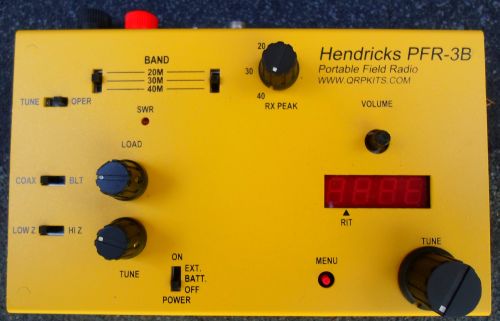

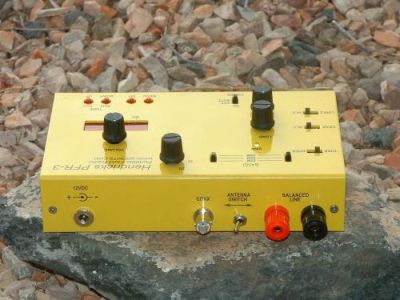

3 Band Portable Field Radio

Designed by Steve Weber. KD1JV

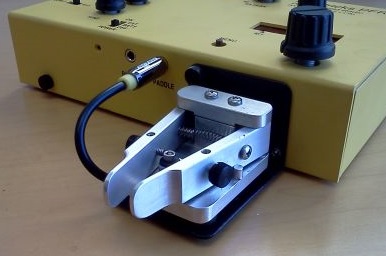

Note: Paddles no longer available


Bands : 40 meters, 30 meters and 20 meters
Tuning range: Full band coverage
Mode: CW only

Receiver MSD: 0.2 uV typical
Selectivity : 300 Hz
Receive current, no signal typical:
Active, 47 ma
Idle, 34 ma

5 watts at 12 volts, all bands
Spurs: - 50 dBc maximum, all bands

5 to 35 wpm internal iambic keyer
Two (2) 63 character keyer memories.

Coax or balanced line output
Built in BLT (balanced line tuner)

Size: 7.3" long, 4.4" wide, 1.6" high. (18.4 x 11 x 4cm)

Power supply voltage: 8 volts minimum, 12.5 volts maximum. 12 to 9 volts recommend.

Supporting Files and Documents

 PFR-3A Production Manual

 PFR-3A Decal Installation Instruction

 PFR Paddle Assembly Manual

Subscribe to the pfr3_group group
Powered by groups.yahoo.com


Below is a list of issues that have come up by our builders.

  • There are two caps marked C48 on board with different values. One is between the phone and paddle jack and the other is just below U9. Note that the cap between the phone and paddle jack should be C30 (.01 UFD)
  • The color coding in the instructions for R6 and R7 are incorrect and should be orange orange yellow instead of red red orange.
  • The 4.7pF cap may have been replaced by a green 5pF cap with a black dot. Either will work.
  • Some of the electrolytic caps call for 16V parts. 25V parts may have been shipped, again either will work.
  • In the section on the Low Pass Filters it calls for a 33 pfd cap to be installed. This should be a 22 pfd.
  • In the Group 2 assembly, C26 .1 ufd should be installed with C25 and C28

In the News

Ken Evans, W4DU has written a wonderful review that was published by ARCI in the QRP Quaterly newsletter.

Ordering Information

You may use our Order page to order the Portable Field Radio by mail using check or money order. or

Ordering electronically by PayPal using the buttons below.

When an order is placed through PayPal, shipping charges are automatically calculated then a confirmation email is immediately sent by PayPal. For more information about our shipping charges please take a look at our Order Form page. We also receive this same email, so please rest assured that we have logged your order into our books. No other order confirmation will be issued. Your kit will be shipped in 1-2 weeks after our receiving the order, unless otherwise stated. Thanks for your support.

Orders of multiple kits that I can ship in the same box will have shipping costs adjusted and the excess will be refunded.

PFR3 Transceiver: $260.00
View your PayPal cart:

Note: There is free shipping on the paddles when orderded with the PFR3

Please use our Order page to order by mail.
