Easy Receiver

Easy Transmitter

Easy Audio
Bandpass Filter

Easy TR Switch

Easy Field Strength
Indicator

Easy Low Pass Filter

Easy SWR Indicator

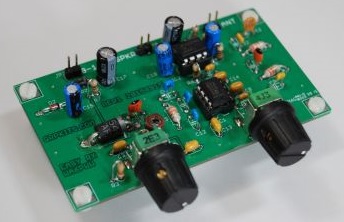

Easy Receiver


Features

  • Easy to build and use.
  • No toroids to wind and only one adjustment to set the receive frequency.
  • Assembles in 1-2 hours.
  • Covers approximately 75kHz of the 40M band.
  • Direct conversion design with a bandpass filter, NE602 mixer and LM386 audio amplifier.
  • Mates with our Easy Transmitter and Easy Audio Filter to make a QRP station.

Manuals and other useful information


 Easy Receiver for 40 Meters ver v8.1 (7/8/2016)

Ordering Information

Ordering electronically by PayPal using the buttons below.

NOTE
When an order is placed through PayPal, shipping charges are automatically calculated then a confirmation email is immediately sent by PayPal. We also receive this same email, so please rest assured that we have logged your order into our books. No other order confirmation will be issued. Your kit will be shipped in 1-2 weeks after our receiving the order, unless otherwise stated. Thanks for your support.


Easy Receiver Kit: $25.00
View your PayPal cart:


Easy Transmitter



  Temporarily out of Stock
Please check back soon for availability


Features

  • VXO tuning to cover 500HZ on 40M
  • Supplied with either a 7.030 or 7.040 crystal
  • Powered from 9-15V
  • Output of approximately 2 W
  • No toroids to wind
  • Build in 1-2 hours or less
  • Designed for use with our Easy RX, Easy Filter, Easy Tuner and Easy Keyer kits
  • Fun kit to build for anyone wanting a basic transmitter kit
Manuals and other useful information


 Easy Transmitter for 40 Meters ver v2.7 (11/19/2016)



Easy Audio Bandpass Filter


Features

  • A basic audio filter kit with preamp, op-amp filter and LM386 audio amp to drive headphones or speaker
  • Has a peak in response that is tunable from approximately 300Hz to 2Khz
  • Tuning and volume pots for adjustment
  • Build in 1-2 hours or less
  • Designed for use with our Easy RX kits or other radios to add audio filtering

Manuals and other useful information


 Easy Audio Bandpass Filter ver 4 (7/7/2016)

Ordering Information

Ordering electronically by PayPal using the buttons below.

NOTE
When an order is placed through PayPal, shipping charges are automatically calculated then a confirmation email is immediately sent by PayPal. We also receive this same email, so please rest assured that we have logged your order into our books. No other order confirmation will be issued. Your kit will be shipped in 1-2 weeks after our receiving the order, unless otherwise stated. Thanks for your support.


Easy Bandpass Filter Kit: $25.00
View your PayPal cart:


Easy TR Switch


Features

  • A simple switch to provide transmit receive switching
  • Has two separate switched sets of contacts
  • RF sensing built in and activates with as little as 100mW of RF
  • Can be hard keyed by grounding pins on control header
  • Handles 150W of RF over 160-6M

Manuals and other useful information


 Easy TR Switch (02/11/2017)

Ordering Information

Ordering electronically by PayPal using the buttons below.

NOTE
When an order is placed through PayPal, shipping charges are automatically calculated then a confirmation email is immediately sent by PayPal. We also receive this same email, so please rest assured that we have logged your order into our books. No other order confirmation will be issued. Your kit will be shipped in 1-2 weeks after our receiving the order, unless otherwise stated. Thanks for your support.


Easy TR Switch Kit: $20.00
View your PayPal cart:

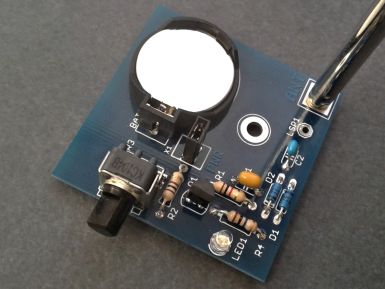

Easy Field Strength Indicator


Features

  • Provides a visual monitor of RF fields through the brightness of an LED
  • Responds to fields from approximately 1MHz to a few hundred MHz
  • Circuit board is 1.75x1.75 inches
  • Uses a high brightness LED to indicate field intensity
  • Powered by a 2032 coin cell battery or external 3-9V power source
  • Can be built into a housing or used stand alone

Manuals and other useful information


 Easy Field Strength Manual (2/5/2017


Ordering Information

Ordering electronically by PayPal using the buttons below.

NOTE
When an order is placed through PayPal, shipping charges are automatically calculated then a confirmation email is immediately sent by PayPal. We also receive this same email, so please rest assured that we have logged your order into our books. No other order confirmation will be issued. Your kit will be shipped in 1-2 weeks after our receiving the order, unless otherwise stated. Thanks for your support.


Easy Field Strength Indicator: $15.00
Optional whip antenna: $2.50
View your PayPal cart:

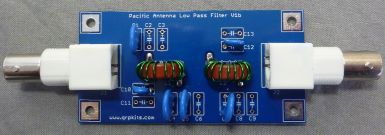

Easy Low Pass Filter


Features

The Low Pass Filter kit from qrpkits.com provides a 5 pole LC filter and includes Capacitors in parallel to the inductors to resonate them on the second and third harmonics. When properly configured, it is capable of reducing second and third harmonic energy by more than 50dB. The kit is constructed on a 1.5x 3" board and includes board mounted BNC connectors, all board mounted parts and band specific toroids and capacitors.

Specifications

  • Single band, 5 pole low pass filter on a 1.5 x 3" board
  • Cauer design for best attenuation of harmonics
  • Reduces harmonics by 50dB or more
  • Includes all parts and BNC connectors

Manuals and other useful information


 Easy Low Pass Filter Assembly Manual V4


Ordering Information

Ordering electronically by PayPal using the buttons below.

NOTE
When an order is placed through PayPal, shipping charges are automatically calculated then a confirmation email is immediately sent by PayPal. We also receive this same email, so please rest assured that we have logged your order into our books. No other order confirmation will be issued. Your kit will be shipped in 1-2 weeks after our receiving the order, unless otherwise stated. Thanks for your support.


Easy Lowpass Filter 20m: $15.00
Easy Lowpass Filter 30m: $15.00
Easy Lowpass Filter 40m: $15.00
View your PayPal cart:



Easy SWR Indicator


Features

  • Designed for power levels of 0.2 to 5 Watts
  • Provides protection for transmitter by limiting reflected power during tuneup
  • Indicates match to antenna by dimming of LED
  • Constructed on a 1.5x 2.5 inch printed circuit board
  • Includes board mounted BNC connectors.

Manuals and other useful information


 Easy SWR Indicator Assembly Manual


Ordering Information

Ordering electronically by PayPal using the buttons below.

NOTE
When an order is placed through PayPal, shipping charges are automatically calculated then a confirmation email is immediately sent by PayPal. We also receive this same email, so please rest assured that we have logged your order into our books. No other order confirmation will be issued. Your kit will be shipped in 1-2 weeks after our receiving the order, unless otherwise stated. Thanks for your support.


Easy SWR Indicator: $15.00
View your PayPal cart:
