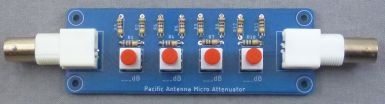

40dB Step RF Micro Attenuator


Description

  • Provides attenuation of input signals by up to 40dB in 4 steps of 10dB.
  • A great first time kit to learn soldering and assembly.
  • Great for hidden transmitter foxhunting to control received signal strength.
  • Generate low level signals from sources including signal generators, oscillators and transmitters.
  • Can be used with a signal source to check S meter and receiver response.
  • Handles 0.5W continuous and up to 2W for intermittent signals.
  • Bidirectional, either end can be an input or output.
  • Usable from DC to over 200MHz.
  • Size: 1.3 x3.8 inches. (33 x 95mm)

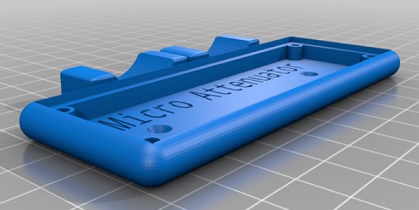

Micro Attenuator 3d printed case
Available at Thingiverse


Supporting Files and Documents


 40db Step RF Micro Attenuator Assembly Manual (12/18/2020)


Ordering Information

To order this kit, use the buttons below. (you do not have to have a PayPal account to pay for items using a credit card)

NOTE
Use Add to cart buttons to add an item to your shopping cart. Use "Continue Shopping" tab to go back and add multiple items to your cart. You can view shipping charges before making payment. Payment can be made by Credit Card, Debit Card or by Paypal. Selecting "Checkout" in your shopping cart will allow you to use a credit card rather than Paypal Please be sure the address you supply is correct. We receive an automated notification when you complete payment. Your order will be shipped as soon as possible unless otherwise stated. Thanks for your support!


40dB Step RF Micro Attenuator: 10.00
